steel sealed collets
Material: 65Mn
Accuracy≤0.008mm
Hardness: HRC44-46
Processing range: widely used in milling, boring, drilling, CNC engraving machines and other processing operations
Features: The collet utilizes the difference of the grooves to achieve the surrounding water stop, which is suitable for clamping tools with water outlet holes. Can withstand water pressure 30MPA. Large clamping
force and wide clamping range.
Classification :
Collets
Key Words:
Collets
steel sealed collets

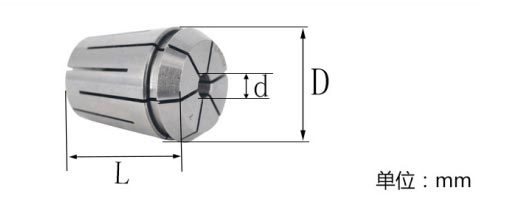

Product Parameters
|
Model |
D |
L |
d |
|
ERC11 |
11 |
18 |
3-6 |
|
ERC16 |
16 |
27 |
3-10 |
|
ERC20 |
20 |
31 |
3-13 |
|
ERC25 |
25 |
34 |
3-16 |
|
ERC32 |
32 |
40 |
3-20 |
|
ERC40 |
40 |
46 |
3-26 |
Equipment
With the development of business and production sales,we have updated the production equipment and testing instruments.So that we can provide high precision and high quality products,and have good strength in this filed.
FACTORY
The company mainly produces various of spring collet,such as ER collet series, hydraulic collet series, SK high-speed collet series, DC pull back collet series, ER water stop collet series, ERG type tapping collet series.We also have cnc tool holders,like BT/SK/HSK/CATISO tool holder,precision vise,quick change tool post,live center,boring head,locking device ,angle head ,nut ,pull stud ,spanner wrench and so other types of machine tools.
