Guide Bushing
Classification :
Reduction Bushes Sleeves
Key Words:
Reduction Bushes Sleeves
PRODUCT PARAMETERS

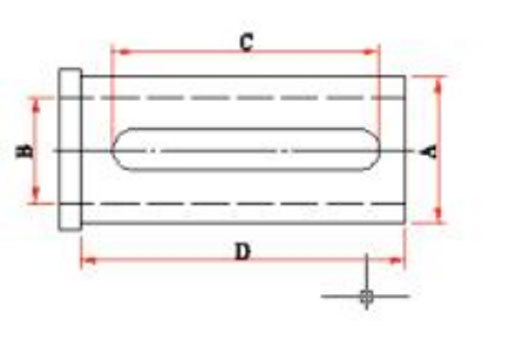

| Code NO | A(O.D) | B(I.D) | C(Slot length) | D |
| C3/4 | 3/4 | 1/4 | 1-7/8 | 2-1/4 |
| 5/16 | ||||
| 3/8 | ||||
| 1/2 | ||||
| C1" | 1" | 1/4 | 2-3/8 | 2-3/4 |
| 5/16 | ||||
| 3/8 | ||||
| 1/2 | ||||
| 5/8 | ||||
| 3/4 | ||||
| C1-1/4 | 1-1/4 | 3/8 | 2-7/8 | 3-1/4 |
| 1/2 | ||||
| 5/8 | ||||
| 3/4 | ||||
| 7/8 | ||||
| 1" | ||||
| C1-1/2 | 1-1/2 | 3/8 | 3" | 3-3/8 |
| 1/2 | ||||
| 5/8 | ||||
| 3/4 | ||||
| 7/8 | ||||
| 1" | ||||
| 1-1/4 | ||||
| C1-3/4 | 1-3/4 | 1/2 | 3-1/8 | 3-1/2 |
| 5/8 | ||||
| 3/4 | ||||
| 7/8 | ||||
| 1" | ||||
| 1-1/4 | ||||
| 1-1/2 | ||||
| C2" | 2" | 1/2 | 3-5/8 | 4" |
| 5/8 | ||||
| 3/4 | ||||
| 1" | ||||
| 1-1/4 | ||||
| 1-1/2 | ||||
| 1-3/4 |
Equipment
With the development of business and production sales,we have updated the production equipment and testing instruments.So that we can provide high precision and high quality products,and have good strength in this filed.
FACTORY
The company mainly produces various of spring collet,such as ER collet series, hydraulic collet series, SK high-speed collet series, DC pull back collet series, ER water stop collet series, ERG type tapping collet series.We also have cnc tool holders,like BT/SK/HSK/CATISO tool holder,precision vise,quick change tool post,live center,boring head,locking device ,angle head ,nut ,pull stud ,spanner wrench and so other types of machine tools.
