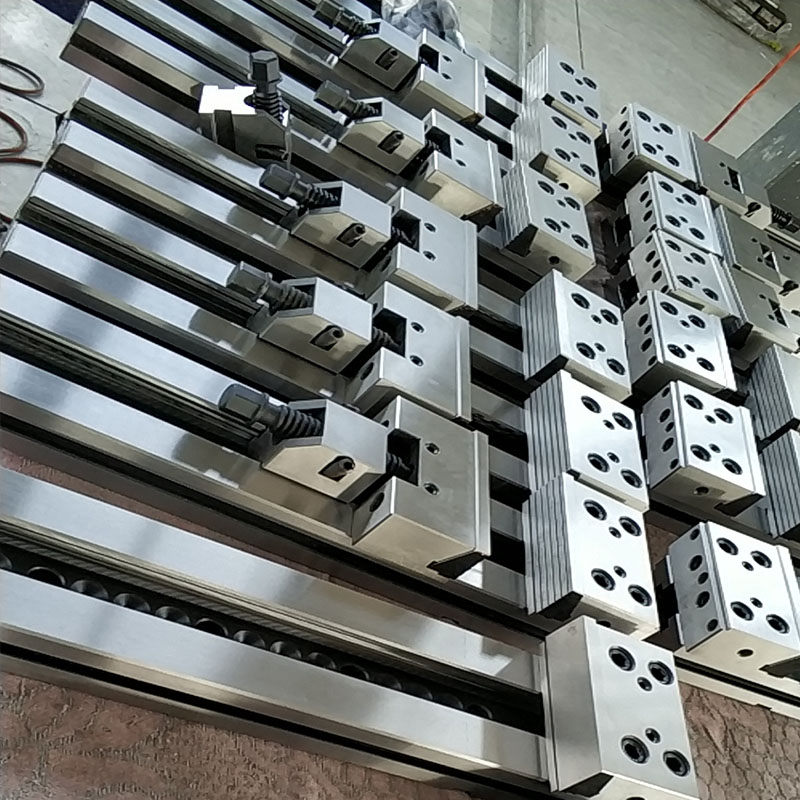

GT100 GT125 GT150 GT175 GT200 GT300 Precision Modular Vise
Classification :
Precision Vise
Key Words:
Precision Vise
Product Parameters
| GT150 GT175 GT200 GT300 PRECISION MODULAR VISES | |||||
| Order No. | B mm |
H mm |
Smax mm |
L mm |
Clamping force |
| GT100-I | 100 | 30 | 100 | 270 | 3000 |
| GT125-I | 125 | 40 | 150 | 345 | 3000 |
| GT150A-I | 150 | 50 | 200 | 420 | 5000 |
| GT150B-I | 150 | 50 | 300 | 520 | 5000 |
| GT175A-I | 175 | 60 | 200 | 455 | 6000 |
| GT175B-I | 175 | 60 | 300 | 555 | 6000 |
| GT175C-I | 175 | 60 | 400 | 655 | 6000 |
| GT175D-I | 175 | 60 | 500 | 755 | 6000 |
| GT175E-I | 175 | 60 | 600 | 855 | 6000 |
| GT200A-I | 200 | 65 | 200 | 495 | 10000 |
| GT200B-I | 200 | 65 | 300 | 595 | 10000 |
| GT200C-I | 200 | 65 | 400 | 695 | 10000 |
| GT200D-I | 200 | 65 | 500 | 795 | 10000 |
| GT200E-I | 200 | 65 | 600 | 895 | 10000 |
| GT300A-I | 300 | 80 | 200 | 535 | 12000 |
| GT300B-I | 300 | 80 | 300 | 635 | 12000 |
| GT300C-I | 300 | 80 | 400 | 735 | 12000 |
| GT300D-I | 300 | 80 | 500 | 835 | 12000 |
| GT300E-I | 300 | 80 | 600 | 935 | 12000 |
| GT300F-I | 300 | 80 | 700 | 1035 | 12000 |
| GT300G-I | 300 | 80 | 800 | 1135 | 12000 |
- GT Precision Modular CNC Milling Machine Tool Vise produced of high quality steel,carburized to surface hardness HRC58-62.
2.Parallelism 0.005mm/100mm,squareness 0.005mm.
3.Precision modular vises have interchangeable base,fixed/movable jawsit is quickly to clamp and easy to operate.
4.Precision modular vises is widely used on machining center and other precision machine tools.
